Resistors: Types, Functions, and Applications


Resistors are indispensable components in the realm of electronics. These passive elements introduce resistance to the flow of electrical current, allowing for control and regulation. The primary function of resistors is to control the flow of electric current in a circuit. They can be used to limit current levels, divide voltages, adjust signal levels, and provide biasing in electronic circuits.

By understanding the science of Ohm's Law, which states that the current (I) passing through a resistor is inversely proportional to its resistance (R) and directly proportional to the voltage (V) across it \[ I = \frac{V}{R} \], we can grasp the profound impact of resistors in circuit design.

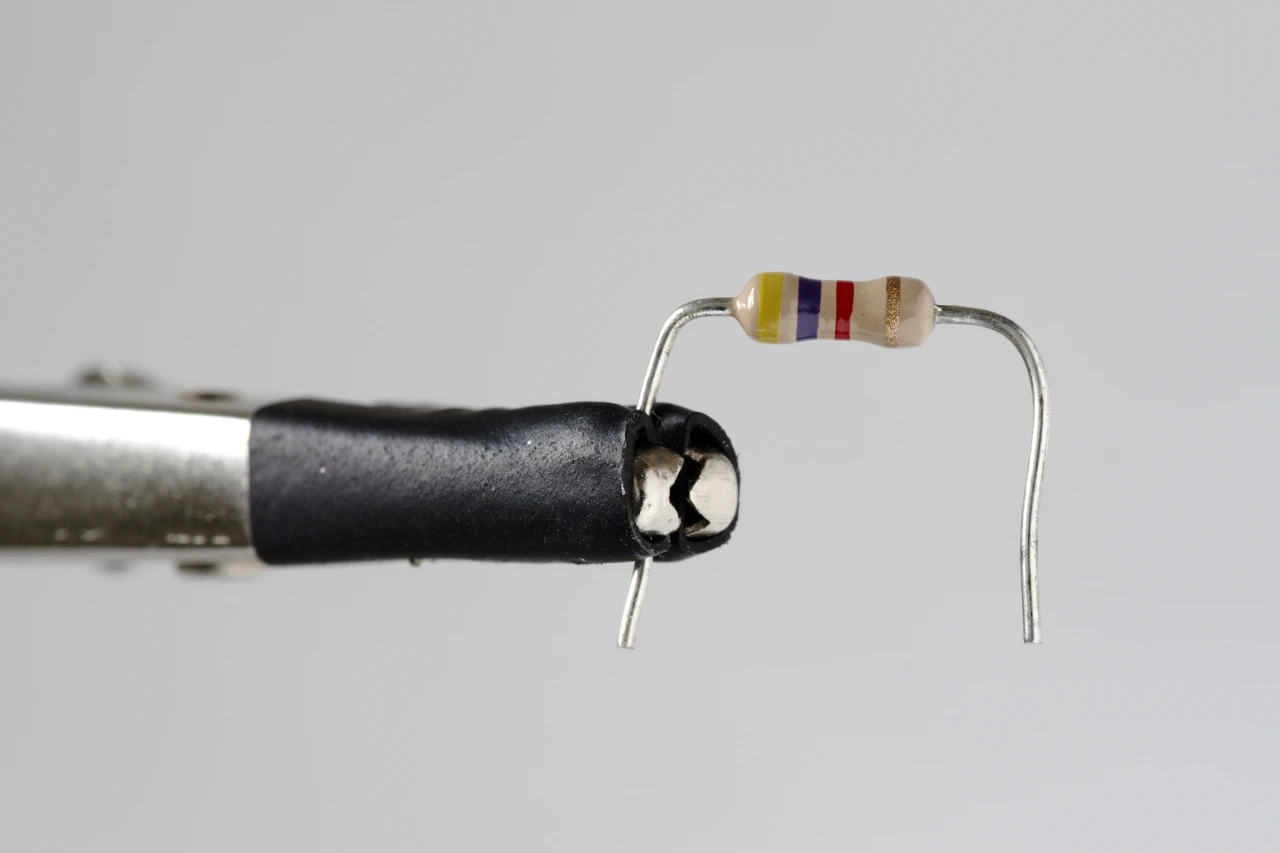

Resistor

Current-limiting resistors are commonly used with light-emitting diodes (LEDs) to protect them from excessive current. By selecting an appropriate resistor value, the current through the LED can be limited to a safe operating level.

Voltage-divider circuits utilize resistors to divide a voltage into desired proportions. This is commonly used in analog circuits, sensor interfaces, and voltage reference applications.

What is Resistance?

Resistance is a measure of the opposition to the flow of electric current in an electrical component or circuit. It quantifies how difficult it is for electric current to pass through a given material or component.

Here are some key points about resistance -

Unit

The unit of resistance is the ohm.

Ohm's Law

Resistance is one of the three primary elements described by Ohm's Law, which states: V=I * R, where V is voltage (in volts), I is current (in amperes or amps), and R is resistance (in ohms).

Factors Affecting Resistance

The resistance of a conductor depends on several factors

Material

Different materials have different resistivities. For instance, copper has a lower resistivity than iron, making it a better conductor.

Length

Resistance is directly proportional to the length of the conductor. A longer conductor will have a higher resistance than a shorter one of the same material and cross-sectional area.

Cross-sectional Area

Resistance is inversely proportional to the cross-sectional area of the conductor. A conductor with a larger cross-sectional area will have a lower resistance than one with a smaller area, assuming both are made of the same material and have the same length.

Temperature

The resistance of most materials changes with temperature. For many metals, resistance increases as temperature rises.

In simple terms, you can think of resistance like the "friction" against the flow of electricity. Just as friction opposes the motion of objects, resistance opposes the flow of electric current.

Symbol

In circuit diagrams, resistance is typically represented with a jagged line, symbolizing a resistor.

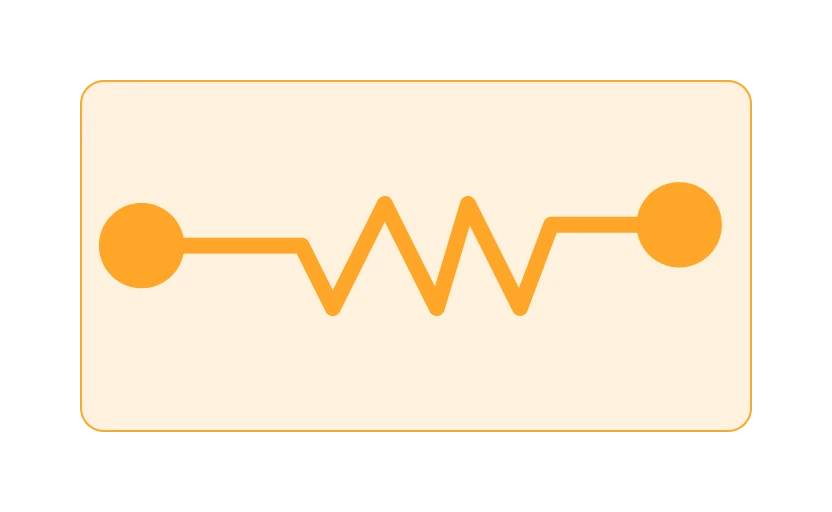

Resistor Symbol

Types of Resistors

Fixed Resistors

Their resistance value remains constant. Common types include:

  • Carbon Composition Resistor

    Comprises a mixture of carbon clay, known for its long-term stability.

  • Metal Film Resistor

    Utilizes a metallic film for resistance. It's more accurate than its carbon counterpart.

  • Wire Wound Resistor

    Features a metal wire wrapped around an insulator. It's preferred when precision is paramount.

Variable Resistors

These offer adjustable resistance. Key types are:

  • Potentiometer

    Frequently found in volume controls.

  • Rheostat

    Commonly used in power applications.

Special Resistors

Tailored for specific uses. Examples are:

  • Power Resistors

    Built to handle significant power.

  • Precision Resistors

    Provide highly accurate resistance with minimal variance.

Resistor Color Codes

Color bands on resistors signify their resistance value. Each color aligns with a specific number. Reading these colors in sequence reveals the resistance.

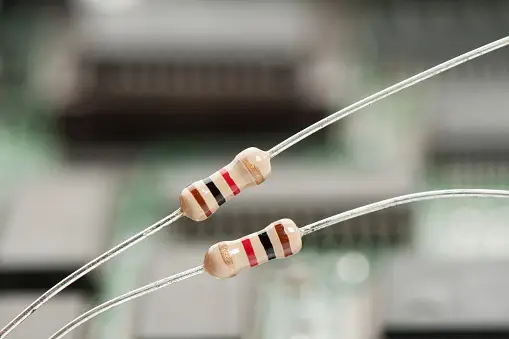

resistor color code

What are Resistor Color Codes?

Resistor color codes are a series of colored bands painted onto the body of resistors. These bands serve as a coded representation, indicating the resistor's value, tolerance, and sometimes its reliability or temperature coefficient.

Breaking Down the Color Bands

Typically, resistors have either 4, 5, or 6 color bands. Each color corresponds to a specific number or meaning:

Black (0)

Brown (1)

Red (2)

Orange (3)

Yellow (4)

Green (5)

Blue (6)

Violet (7)

Gray (8)

White (9)

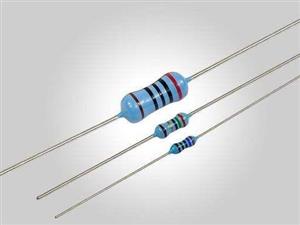

resistors color bands

4-Band Resistor Color Codes

The sequence for a 4-band resistor is as follows:

First Band

First significant digit.

Second Band

Second significant digit.

Third Band

Multiplier (power of ten to which the two significant digits are multiplied).

Fourth Band

Tolerance (variation the resistor may have from its nominal value).

For instance, a resistor with bands colored red, violet, yellow, and gold would have a value of 2.7M ohm with a ±5% tolerance.

5 and 6-Band Resistor Color Codes

For 5 and 6-band resistors:

First and Second Bands

Significant digits.

Third Band

Third significant digit (only for 6-band resistors).

Fourth Band (5-band) or Fifth Band (6-band)

Multiplier.

Last Band

Tolerance. An additional band in 6-band resistors indicates the temperature coefficient.

Why is Resistor Color Coding Important?

  • Quick Identification

    Skilled technicians can identify a resistor's value at a glance without needing a multimeter.

  • Compactness

    Printing numbers on tiny resistors can be challenging. Color bands, however, are easily distinguishable.

  • Standardization

    It offers a globally accepted method for resistor value identification.

Resistor Applications

Voltage Division

Series-connected resistors divide the total voltage.

Current Limiting

Protect components from excessive current.

Biasing

Establish operational points in transistor circuits.

Feedback

Determine amplifier gain.

Load

Useful for testing scenarios.
