A Real-Time Operating System (RTOS) is specifically crafted to cater to applications that need immediate and consistent responses, such as air traffic control systems.

Unlike traditional time-sharing operating systems like Unix, which allocate system resources using a scheduler, data buffers, or fixed task prioritization in a multitasking environment, an RTOS operates with the highest priority on real-time demands.

These real-time applications necessitate processing data promptly and accurately for long durations to ensure they function seamlessly.

rtos basics

Every aspect of processing time in firm real-time operating systems must be well-defined and adhered to, rather than merely aiming for the minimum. This ensures that all operations are executed within the stipulated time frames.

Applications like control systems, industrial automation systems, and others demand a swift and timely response to events, making them ideal candidates for RTOS.

With its compact design, superior performance, and stringent timing adherence, an RTOS offers services that empower real-time applications to utilize system resources, including memory and processing capabilities, in a systematic and foreseeable way. The scheduling algorithm plays a pivotal role in this.

RTOSs are pivotal in embedded systems, which are compact, specialized computing structures integrated into larger devices. These types of systems, such as air traffic control systems, automotive systems, and industrial control systems, rely heavily on RTOS for their soft real-time systems requirements.

Basic Features of RTOS

Real-Time Operating Systems (RTOS) is designed to serve real-time applications that process data as it comes in, typically without buffer delays. Here are the basic features of an RTOS -

Deterministic Behavior

An RTOS responds to inputs or events deterministically, meaning it guarantees a specific response within a defined time limit.

Multitasking

RTOS supports concurrent execution of multiple tasks, allowing for efficient use of system resources.

Preemptive Scheduling

RTOS can preempt a currently executing task to serve a higher-priority task, ensuring that the most critical tasks are always given preference.

Inter-task Communication

Provides mechanisms like semaphores, message queues, and mailboxes to facilitate communication between different tasks.

Memory Management

Efficient management of memory resources, often including both stack and heap memory allocation.

Real-time Clock

Supports real-time clock operations for time-based task scheduling and operations.

Interrupt Handling

Efficient and immediate response to external interrupts, ensuring minimal latency.

Resource Management

Provides mechanisms to efficiently manage and allocate system resources like CPU, memory, and I/O devices.

Timers and Counters

Supports timers and counters for task scheduling, timeouts, and other time-based operations.

Error Handling

Provides mechanisms to detect, report, and handle system errors to ensure reliable system operation.

Security and Safety

Some RTOSs come with built-in features to ensure system security and safety, especially crucial for mission-critical applications.

Small Footprint

RTOSs are typically compact, making them suitable for embedded systems with limited memory and storage resources.

Comparing General-Purpose OS and RTOS

At its core, a general-purpose operating system (OS) is designed to manage user applications and the intricate web of hardware resources within a computer. It lays down a structured framework, offering programming interfaces that ensure applications can seamlessly request OS services and interact with the broader system components.

While a general-purpose OS can be equipped with certain real-time capabilities, it's primarily tailored for standard computing tasks rather than specialized real-time operations.

It's essential to understand that while general-purpose OSs can handle a wide range of tasks, they might not always be the best fit for applications requiring precise timing and responsiveness.

Contrarily, a Real-Time Operating System (RTOS) is meticulously crafted for hard real-time systems. Its architecture and functionalities are honed to guarantee responses within a set time frame, especially when faced with external events that come with non-negotiable timing requirements or deadlines.

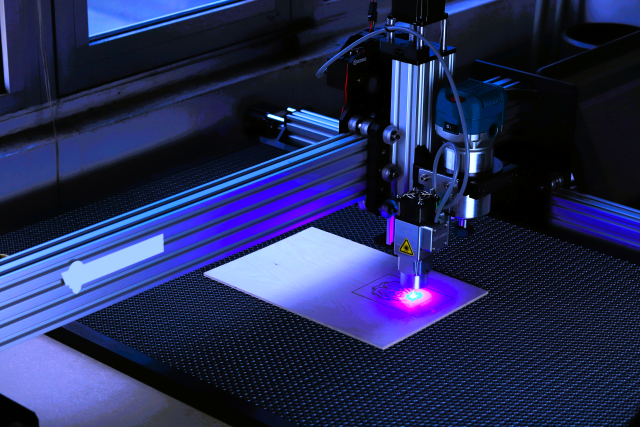

CNC Laser Cutting Machine

Consider the intricate operations of a computer numerical control (CNC) machine tool. Fundamentally, it operates in a methodical step-by-step manner. Each step is a periodic task, often with a rapid frequency, say 1 ms.

Throughout these steps, the CNC machine is in a constant state of vigilance, monitoring the cutting head's current position. It then dynamically computes the trajectory and guides the head to its subsequent position.

The precision and timing required for such operations are non-trivial. A mere delay or miscalculation can lead to significant errors in the final product.

To ensure that the cutting patterns align perfectly with the design, the CNC machine leans heavily on an RTOS. The RTOS ensures the generation of impeccably timed pulse sequences, which are paramount in controlling the head's movement with unmatched precision.

In essence, while both general-purpose OSs and RTOSs have their unique strengths, the choice between them boils down to the specific requirements of the task at hand. For applications that demand unwavering precision and timing, an RTOS is the undisputed champion.

Different types of Real-Time Operating Systems

  • Hard RTOS

    These are designed for real-time systems with strict timing constraints, where a single missed deadline could have catastrophic consequences.

  • Soft RTOS

    These are designed for systems with less stringent timing constraints, where missed deadlines have a limited impact on system performance.

  • Micro RTOS

    These are small and lightweight RTOS designed for resource-constrained embedded systems.

  • Commercial RTOS

    These are proprietary RTOS that is sold commercially by companies such as QNX, VxWorks, and Green Hills Software.

  • Open-source RTOS

    These are RTOS that is freely available and open-sourced, such as FreeRTOS, RT-Linux, and eCos.

RTOS Architectures

There are two main types of Real-Time Operating System architecture.

  • Monolithic architecture

    This type of RTOS has a single monolithic kernel that contains all the system components and functions. All tasks run in a single address space, and the kernel provides all the necessary services.

  • Microkernel architecture

    This type of RTOS has a small microkernel that provides basic system services such as task management, inter-process communication, and memory management.

    Additional system components, such as device drivers, run as separate tasks outside the kernel. This architecture provides greater flexibility and modularity compared to monolithic architecture.

RTOS Monolithic Architecture

Monolithic RTOS architecture refers to a design where all system components are unified under a single umbrella, typically termed the kernel.

Within this design, every task operates within a unified address space, utilizing common resources like memory and CPU cycles.

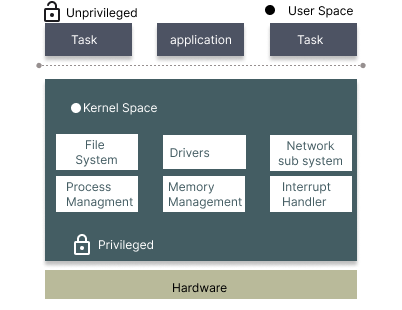

Illustration of Monolithic Architecture

The kernel, being the heart of this architecture, is responsible for a myriad of essential services. This includes task scheduling, managing memory, and handling interrupts, ensuring the system runs seamlessly. The inherent simplicity of the monolithic design makes it user-friendly and straightforward.

Yet, a challenge arises when the system scales in size and intricacy. The monolithic kernel, due to its unified nature, can become cumbersome to manage and maintain. This might lead to potential dips in system stability and overall performance.

Despite these challenges, monolithic architecture remains a popular choice, especially for basic embedded systems, primarily because of its uncomplicated nature and ease of implementation.

Monolithic architecture last_page

RTOS Microkernel Architecture

The Microkernel RTOS (Real-Time Operating System) design is an architectural approach where the system is segmented into various components. At its core lies a compact central kernel responsible for delivering fundamental system services.

In this design paradigm, the kernel is tasked with offering only vital services, encompassing areas like task management, inter-process communication, and memory oversight. Contrarily, supplementary components, such as device drivers and file systems, operate externally from the kernel, functioning as distinct tasks.

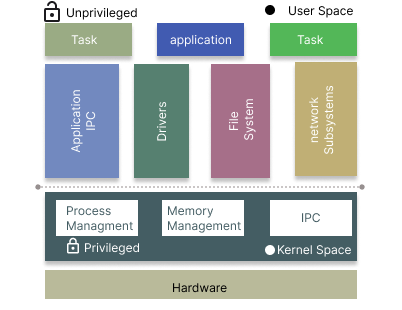

Illustration of Microkernel RTOS

The microkernel architecture stands out for its enhanced flexibility and modularity. Each component within this design can be individually crafted, assessed, and updated. The kernel's compact nature further simplifies its maintenance, bolstering the system's stability and dependability.

Yet, it's worth noting that the microkernel design can be perceived as more intricate compared to its monolithic counterpart, potentially posing challenges in comprehension and implementation.

A notable concern is the inter-component communication, which might introduce overheads, potentially impacting the system's performance, especially in scenarios demanding real-time responses.

Despite these nuances, the microkernel architecture remains a favored choice for intricate and resource-limited embedded systems, given its modular benefits.

Microkernel Architecture last_page

Future of RTOS

Growth of IoT (Internet of Things)

Increased Demand

As the number of interconnected devices continues to rise, there will be a growing need for RTOS to manage these devices. These systems will require real-time responses, especially in sectors like healthcare, automotive, and smart cities.

Resource Constraints

Many IoT devices are resource-constrained. RTOS will need to evolve to operate efficiently under limited memory, processing power, and battery life.

AI and Machine Learning Integration

Predictive Responses

Instead of just being reactive, future RTOS might use AI to predict the need for specific tasks and allocate resources accordingly.

Enhanced User Experience

Machine learning could be used to adapt the system's responses based on user behavior, leading to a more personalized user experience.

Security in RTOS

Rising Threats

As RTOS finds applications in critical sectors, they become attractive targets for cyber-attacks. Ensuring their security becomes paramount.

Adaptive Security Protocols

Future RTOS might incorporate self-learning security protocols that adapt to new threats in real-time.

Integration with Cloud and Edge Computing

Hybrid Systems

RTOS might be designed to work in tandem with cloud systems, offloading certain tasks to the cloud while handling real-time tasks locally.

Edge Computing

With the rise of edge computing, RTOS will play a key role in processing data locally on devices before sending it to the main server. This reduces latency and ensures real-time responses.

Autonomous Systems

Vehicles and Drones

As we move towards a future with autonomous vehicles and drones, RTOS will be at the heart of these systems, ensuring timely responses to real-world stimuli..

Advanced Robotics

RTOS will be crucial in managing the complex tasks performed by advanced robots, especially in sectors like healthcare, manufacturing, and logistics..

Modularity and Scalability

Plug-and-Play Modules

Future RTOS might be designed with modularity in mind, allowing developers to plug in modules for specific functionalities without affecting the core system..

Scalability

As devices become more advanced, the RTOS will need to scale in complexity without compromising performance..

Open Source and Community Development

Open Source RTOS

We might see a rise in community-driven RTOS developments that cater to the specific needs of niche sectors..

Collaborative Security

Open source communities can play a crucial role in identifying vulnerabilities and patching them in real-time.

Standardization

As the application of RTOS expands, there might be a push for standardizing certain aspects to ensure interoperability between devices, especially in sectors that rely heavily on collaborative operations.

Energy Efficiency

With the increasing need to reduce energy consumption, future RTOS will be designed with energy efficiency in mind, optimizing tasks to consume the least amount of power while ensuring performance.

Adaptive Learning

Systems might be designed to learn from their operational environment and adapt their functioning to deliver optimal performance. For example, an RTOS in a car might adapt its operations based on driving conditions and driver behavior.

In summary, the future of RTOS is intertwined with the advancements in technology. As we progress, the demand and applications of RTOS will grow, and they will need to evolve to meet these new challenges and opportunities.

Components of an RTOS

RTOS, or Real-Time Operating System, is a specialized operating system designed to manage hardware resources, execute tasks, and ensure that real-time constraints are met. An RTOS can be found in various systems, from embedded devices to large-scale infrastructure.

Here are the key components of an RTOS -

Kernel

It's the core component of an RTOS. The kernel manages the system's resources, including CPU, memory, and I/O devices. Manages task scheduling, ensuring that tasks with higher priorities are executed before those with lower priorities.

Task Scheduler

Determines the execution sequence of tasks based on their priority, deadlines, and other parameters. Supports various scheduling algorithms like Rate Monotonic Scheduling (RMS), Earliest Deadline First (EDF), etc.

Task Management

Allows for the creation, deletion, and synchronization of tasks. Manages task states such as running, ready, blocked, or terminated.

Interrupt Handlers

Manages external interrupts and ensures that high-priority interrupts are served promptly. Can preempt running tasks if a higher priority interrupt or task needs immediate attention.

Memory Management

Allocates and deallocates memory blocks for tasks and system operations. Often designed to operate in systems with limited memory resources.

Timer Management

Provides timing services like delays, timeouts, and periodic alarms. Ensures precise timing for tasks that require stringent time constraints.

Inter-task Communication Mechanisms

  • Semaphores

    Used for resource allocation and synchronization.

  • Message Queues

    Allows tasks to send and receive messages.

  • Mutexes

    Ensures mutual exclusion, especially when multiple tasks access shared resources.

  • Event Flags

    Indicates when certain conditions or events have occurred.

I/O Services

Manages input and output operations, including reading from sensors or writing to displays. Provides drivers and interfaces for various I/O devices.

File System

Not all RTOS has a file system, but when present, it's optimized for speed and reliability. Allows tasks to read from and write to files, which can be essential for data logging or configuration management.

Networking Stack (optional)

Provides network protocols and services for tasks that require communication over a network. Often includes protocols like TCP/IP, UDP, and sometimes more specific ones like MQTT for IoT applications.

Debugging and Profiling Tools

Helps developers identify issues in their code and optimize performance. Tools can include real-time tracing, performance counters, and loggers.

Middleware (optional)

Provides additional services or libraries to aid application development. Examples include graphics libraries, communication protocols, and database systems.
