PIC10 Series Microcontrollers

PIC Microcontrollers
Table Of Contents

In the vast realm of microcontrollers, size often dictates the scope of applications. The PIC10 Series by Microchip challenges this notion, packing an array of features into a remarkably compact form factor.

Designed for applications where space is a premium and efficiency is a must, the PIC10 Series stands out as a testament to Microchip's innovation.

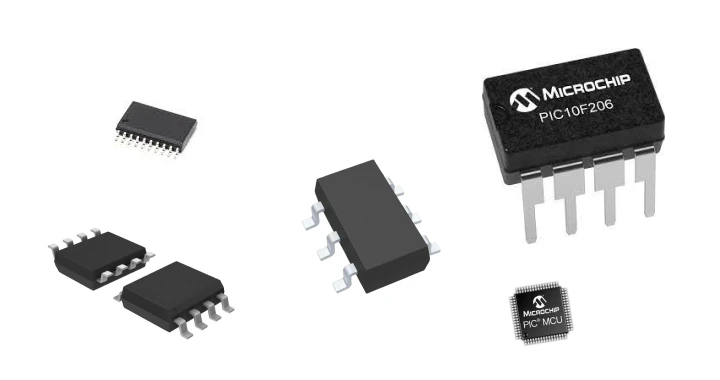

PIC10 Series Microcontrollers

PIC10 Family

The PIC10 Series is a subset of Microchip's extensive lineup of microcontrollers, tailored for applications that demand minimalistic designs without compromising on functionality.

These microcontrollers are known for their small footprint, low power consumption, and cost-effectiveness, making them an ideal choice for a wide range of applications.

Key Features

Compact Design

One of the defining features of the PIC10 Series is its ultra-small form factor, enabling it to fit into space-constrained applications seamlessly.

Enhanced Mid-range Core

The PIC10 Series is equipped with an enhanced mid-range core, facilitating efficient operations and smooth multitasking.

Memory Architecture

The microcontrollers in this series boast Flash program memory, ensuring ample space for application code. The datasheet specifies memory configurations for different models, with some variants offering up to 896 bytes of Flash memory.

Integrated Peripherals

Despite their compact size, these microcontrollers come loaded with integrated peripherals. This includes ADCs, comparators, and timers, enhancing their versatility.

Low Power Operation

Power efficiency is paramount in many applications. The PIC10 Series excels in this domain, offering multiple power modes to optimize consumption based on the application's needs.

Applications

Given their compact size and feature set, the PIC10 Series finds its way into a plethora of applications:

  • Wearable Devices

    Their small footprint makes them ideal for wearable tech, where space and power efficiency are crucial.

  • Remote Sensors

    In remote sensing applications, these microcontrollers can efficiently gather and process data while ensuring minimal power consumption.

  • Battery-operated Devices

    For devices that run on batteries, the low-power operation of the PIC10 Series ensures extended battery life.

  • Miniaturized Consumer Electronics

    From toys to portable gadgets, the PIC10 plays a pivotal role in driving functionality in a compact package.

The PIC10 Series by Microchip stands as a paradigm of how compact designs can still deliver robust performance. Whether it's for a space-constrained industrial application or a battery-operated consumer product, the PIC10 Series offers a solution that marries efficiency with compactness.

As technology trends towards miniaturization, the relevance and importance of microcontrollers like the PIC10 Series will only grow.
