NOR Gate

The NOR gate is a fundamental digital logic gate that performs a specific type of logical operation. It's one of the basic building blocks used in digital circuits, including computer systems and various electronic devices.

The NOR (NOT OR) gate is a basic logic gate used extensively in digital electronics. It is a combination of the OR gate followed by a NOT gate and is so-called because its output is true or '1' only when all of its inputs are NOT true.

Definition and Symbol

NOR Gate

The NOR (NOT-OR) gate is a digital logic gate that implements logical NOR - it performs the logical operation of OR followed by negation. In simple terms, it outputs a true (or '1') only if all inputs are false (or '0').

Symbol

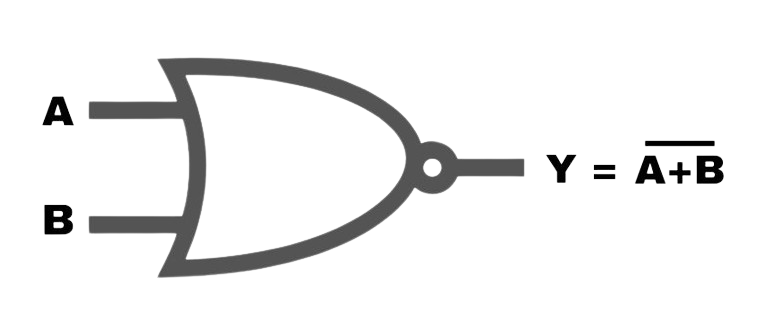

NOR GATE Symbol

The NOR gate is typically represented by a symbol that is a combination of an OR gate and a NOT gate. It has the curved shape of the OR gate with an additional small circle (indicating NOT) at the output end.

A NOR gate can have two or more inputs, but its output is true only when all of its inputs are false ('0'). If any input is true ('1'), the output is false. This operation is represented in a truth table, where all possible input combinations are listed alongside their corresponding outputs.

Truth Table

The truth table for a NOR gate is as follows, where '1' represents true or high voltage and '0' represents false or low voltage:

Input A Input B Output (A NOR B)
0 0 1
0 1 0
1 0 0
1 1 0

The symbolic representation of a NOR gate in a circuit diagram is similar to an OR gate, but with an added circle at the output end, representing the NOT function. Boolean algebra can express the NOR gate operation algebraically, with '+' denoting the OR operation, '.' denoting the AND operation, and an overline (-) denoting the NOT operation.

NOR gates are classified as universal gates because they can be used to implement any other basic gate (AND, OR, NOT) or complex logic function. They are prevalent in various applications, including but not limited to digital logic circuits, binary adders, memory cells, and as building blocks for other logic gates.

Understanding the NOR gate's functioning is critical for anyone studying or working with digital electronics, as it forms the basis for designing and understanding complex digital systems.

Logical Expression

The logical expression for a two-input NOR gate is:

out = ( A + B ) ¯

This can be read as the output being the negation (NOT) of the OR operation of inputs A and B.

Characteristics

Universality

NOR gates are universal gates, meaning they can be used to construct any other type of logic gate (like AND, OR, NOT, etc.). By combining NOR gates in various ways, you can implement any Boolean function.

Active Low Output

The NOR gate only outputs a high level (1) when all inputs are low (0). This characteristic makes it useful in scenarios where active low signals are employed.

Applications

1. Control Circuits

NOR gates are often used in control circuits and decision-making circuits in various electronic devices.

2. Memory Storage

They are fundamental in the design of flip-flops and memory storage elements.

3. Combination and Sequential Logic

Used in both combinational and sequential logic circuits, NOR gates play a role in the design of complex digital systems like computers, communication systems, and automation systems.

Implementation

NOR gates can be implemented using various technologies, including TTL (Transistor-Transistor Logic), CMOS (Complementary Metal-Oxide-Semiconductor), and others. Each technology affects the gate's performance characteristics, such as speed, power consumption, and heat dissipation.
