Multimeter: A Handy Tool for Electronics

A multimeter is an indispensable tool for electronics enthusiasts of all levels. It enables you to measure voltage, current, and resistance in electronic circuits, making it invaluable for testing, troubleshooting, and repairing various electronic devices. Multimeters come in two main types: analog and digital.

Whether you're just starting out or have years of experience in electronics, this comprehensive guide will help you maximize the potential of your multimeter.

Analog multimeters feature a moving needle to display readings, while digital multimeters have a digital display for more accurate and user-friendly measurements. For most electronic applications, we recommend using digital multimeters due to their increased accuracy and ease of use.

Applications of Multimeters

• Testing Batteries

  To check the voltage of a battery, set your multimeter to the "V" setting and connect the probes to the battery terminals.

• Measuring Resistance

  For measuring component resistance, set the multimeter to the "ohm" setting and connect the probes to the component leads.

• Testing Continuity

  To test continuity, select the "Continuity" setting on your multimeter and touch the probes to the points you wish to test. If there is a continuous connection, the multimeter will emit a beep.

• Measuring Current

  To measure current, set your multimeter to the "A" setting and place the probes in series with the component you want to measure.

• Testing Diodes and Transistors

  Multimeters can be used to check the forward voltage drop of diodes and the reverse leakage current of transistors.

• Checking Circuit Continuity

  Circuit continuity can be evaluated by measuring resistance, which should be low if the circuit is unbroken.

• Measuring Inductance and Capacitance

  Multimeters with inductance and capacitance settings enable the measurement of these values in electronic circuits.

• Verifying Circuit Voltages

  By measuring voltage at various points in a circuit, a multimeter helps verify that voltage levels are correct.

• Troubleshooting Electronic Devices

  Multimeters aid in diagnosing and resolving issues by measuring voltage, current, and resistance in electronic devices.

• Testing Electronic Components

  Before using electronic components in a project, multimeters can be employed to ensure their proper functioning.

• Testing Fuses

  Multimeters assist in determining whether a fuse is blown or functional by measuring its resistance.

• Measuring AC and DC Voltage

  Multimeters equipped with AC and DC voltage settings can measure both types of voltage in electronic circuits.

• Verifying Power Supply Voltages

  By measuring the voltage of a power supply, a multimeter can confirm that it provides correct voltage levels for electronic components.

These applications merely scratch the surface of the multimeter's extensive usefulness in electronics. With its versatility and ease of use, a multimeter becomes an invaluable companion for any electronics enthusiast.

A multimeter is a must-have tool for anyone engaged in electronics. Its ability to measure voltage, current, and resistance, along with its wide range of applications, makes it an indispensable asset for testing, troubleshooting, and repairing electronic devices.

Exploring Different Types of Multimeters

Multimeters are available in various types, each with its own characteristics and advantages. Understanding the different types will help you choose the most suitable multimeter for your specific needs. Let's take a closer look at the two important types: analog and digital multimeters.

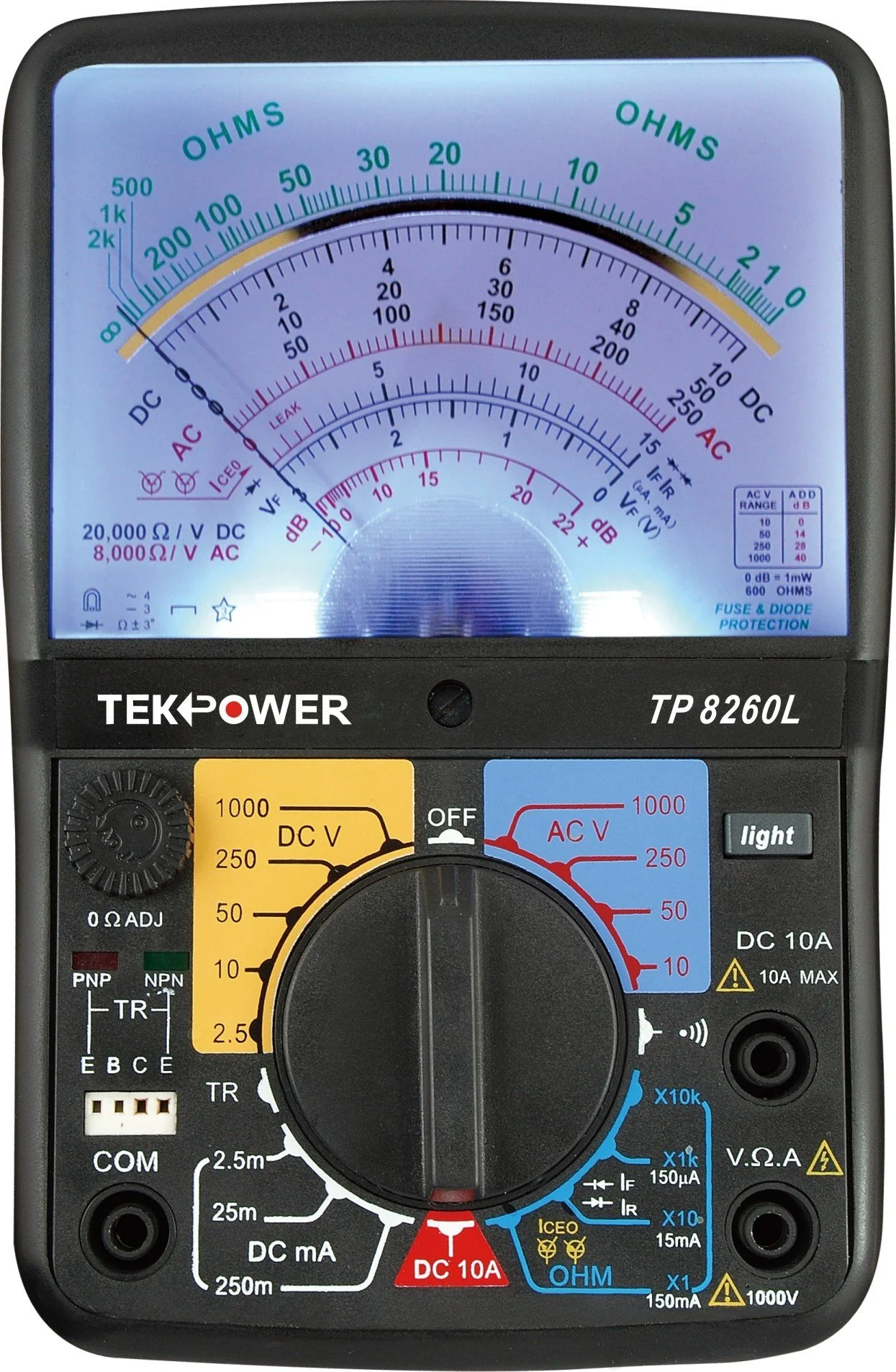

Analog Multimeters

Analog multimeters utilize a moving needle to display readings. They have a traditional and straightforward design, making them familiar to many users.

Analog multimeters are often preferred by enthusiasts who appreciate the classic feel and visual representation of measurements.

However, they require more interpretation and can be less accurate compared to digital multimeters.

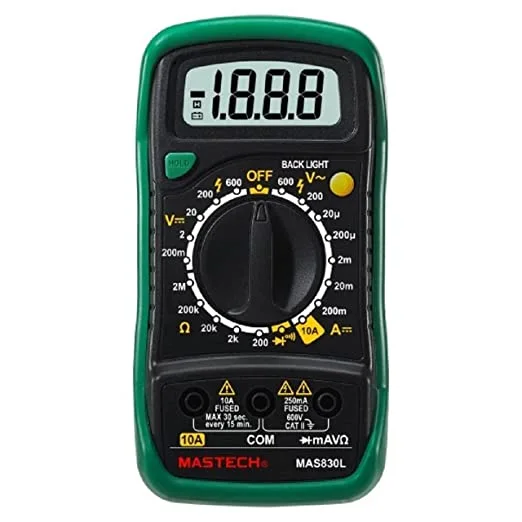

Digital Multimeters

Digital multimeters, on the other hand, have a digital display that provides precise numerical readings. They are more user-friendly and offer higher accuracy compared to analog multimeters.

The digital display makes it easier to interpret measurements, especially for beginners.

Additionally, digital multimeters often come with additional features such as auto-ranging, data hold, and backlight, enhancing their functionality and convenience.

In most cases, digital multimeters are recommended for general electronic applications due to their accuracy, ease of use, and additional features. They have become the standard choice for professionals and hobbyists alike.

However, analog multimeters still have their place, especially when a user prefers the analog interface or needs to monitor rapidly changing values where the needle movement provides a more intuitive understanding.

When selecting a multimeter, consider factors such as your level of expertise, the nature of your projects, required accuracy, and budget. Both analog and digital multimeters can be excellent tools, so choose the one that aligns with your specific requirements and personal preferences.
