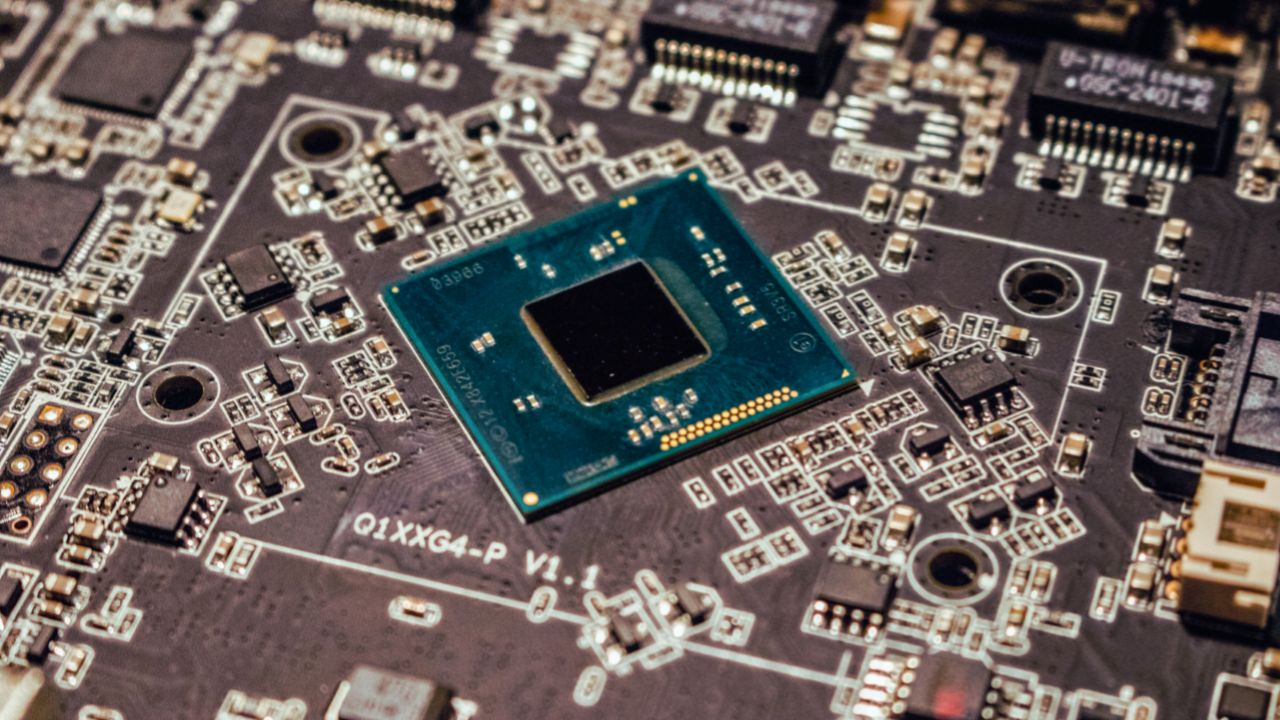

A microcontroller is a compact computational device confined within a single integrated circuit. It comprises a central processing unit (CPU), storage capabilities, and programmable I/O interfaces. These devices are most often found in embedded systems where using a complete computer would be redundant.
A microcontroller offers the flexibility to be coded in multiple programming languages, including C and Assembly, enhancing its application versatility. Such programmable devices are ubiquitous in our day-to-day lives, finding utility in cars, home appliances, and an array of consumer electronics.
A microcontroller, an essential component in many electronic devices, is comprised of several key elements. These include a central processing unit (CPU), memory (both random-access memory or RAM, and read-only memory or ROM), and an assortment of peripheral interfaces, such as serial ports, parallel ports, timers, and analog-to-digital converters.
The CPU, the heart of the microcontroller, is typically based on either a reduced instruction set computer (RISC) or a complex instruction set computer (CISC) architecture. RISC processors are designed with a limited number of straightforward instructions that can be executed swiftly. In contrast, CISC processors feature more intricate instructions capable of performing a wider range of operations.
By leveraging RISC processors, microcontrollers can achieve efficient and speedy execution of instructions. These processors streamline operations, enabling them to complete tasks rapidly. On the other hand, microcontrollers employing CISC processors can handle more complex instructions, making them capable of executing a broader array of operations.
Microcontrollers are versatile devices that incorporate a CPU, memory, and various peripheral interfaces. The CPU, which can be either RISC or CISC, dictates the processing capabilities of the microcontroller, with RISC processors prioritizing speed and simplicity, while CISC processors excel in executing complex instructions.
Types of Microcontrollers
8-bit Micro Controllers
These are the most basic type of microcontroller and are typically used in simple applications
such as controlling LEDs or small motors. These microcontrollers have 8 address lines, which allows
them to address up to 256 bytes of memory.
16-bit Micro Controllers
These are more powerful than 8-bit microcontrollers and are used in applications that require more processing power such as
automotive systems, industrial control systems, and some consumer devices. These microcontrollers have 16 address lines, which
allows them to address up to 64 KB of memory.
32-bit Micro Controllers
These are the most powerful type of microcontroller and are used in applications that require a high level of processing power such as
in smartphones, tablets, and other mobile devices, as well as in complex industrial control systems. These microcontrollers have 32
address lines, which allows them to address up to 4 GB of memory.
RISC (reduced instruction set computing) microcontrollers
These microcontrollers use a simple, efficient instruction set that allows them to execute instructions quickly. They are often used in real-time applications
where fast response times are critical.
CISC (complex instruction set computing) microcontrollers
These microcontrollers use a more complex instruction set that allows them to perform a wide range of tasks. They are often used in applications where a
high level of flexibility is required.
DSP (digital signal processing) microcontrollers
These microcontrollers are optimized for processing digital signals, such as audio and video signals. They are often used in audio and video processing
applications, such as audio amplifiers and security cameras.
Single-board microcontrollers
These microcontrollers are designed to be used on a single board and are often used for prototyping and hobby projects.
They include all the necessary components on a single board, such as a processor, memory, and I/O peripherals. Examples include
Arduino and Raspberry Pi.
Architectures
The architecture of a microcontroller is like the layout of a busy kitchen where all ingredients, utensils, and cooking aids are within easy reach, ensuring a smooth cooking process.
A microcontroller generally consists of a Central Processing Unit (CPU), memory modules (RAM, ROM, and EEPROM), and input/output peripherals. The CPU is the brain of the operation, much like a chef in our kitchen analogy. It interprets and executes instructions from the memory.
Memory in microcontrollers is like the recipe book and storage cupboard of our kitchen. ROM (Read-Only Memory) stores the firmware or program, RAM (Random Access Memory) holds temporary data, and EEPROM (Electrically Erasable Programmable Read-Only Memory) retains essential data even when power is lost.
The I/O peripherals, including serial communication interfaces (like USART, SPI, I2C), ADCs, timers, and interrupts, are the "hands and legs" of the CPU, connecting it with the external world. In our kitchen analogy, these peripherals are like the stove, oven, and other appliances that the chef uses to prepare a dish.
There are several different microcontroller architectures available, each with its own set of features and capabilities.
Harvard architecture
This type of architecture has separate memory spaces for
instructions and data, allowing the processor to access both simultaneously. This can improve performance by allowing
the processor to fetch an instruction while executing another one.
Learn Harvard architecture
Von Neumann architecture
This type of architecture has a single memory space for
both instructions and data, requiring the processor to access one before the other. This can lead to slower performance
due to the need to wait for data to be retrieved from memory.
Learn Von Neumann architecture
RISC (Reduced Instruction Set Computing)
This type of architecture uses a reduced set
of simple instructions that can be executed quickly. This allows the processor to operate at a higher
clock speed and improve performance.
Learn RISC Architecture
CISC (Complex Instruction Set Computing)
This type of architecture uses a larger set of
complex instructions, which can require more clock cycles to execute. This can lead to slower performance
compared to RISC architectures, but can also result in more efficient code due to the use of fewer instructions.
Learn CISC Architectures
ARM (Advanced RISC Machine)
This is a popular microcontroller architecture used in a wide variety of devices, including
smartphones and tablets. It is known for its low power consumption and high performance.
Learn ARM Architecture
x86
This is a microprocessor architecture used in many desktop and laptop computers. It is known for its high performance
and compatibility with a wide range of software.
Learn x86 Architecture
MIPS (Microprocessor without Interlocked Pipeline Stages)
This is a microprocessor architecture known for its simplicity
and high performance. It is used in a variety of devices, including routers and set-top boxes.
Learn MIPS Architecture
Microcontroller Packages
There are many different types of microcontroller packages available, and the specific package that is used can depend on the requirements of the application and the capabilities of the microcontroller.

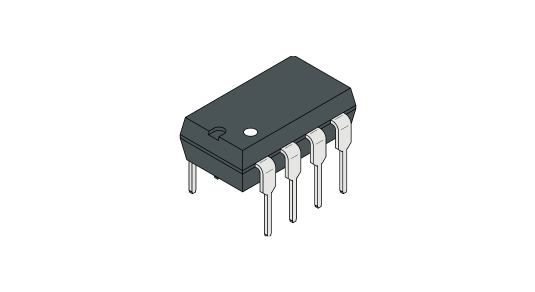

Dual in-line package (DIP)
A DIP is a through-hole package that consists of a rectangular body with two rows of pins. DIPs are relatively
simple to work with and are often used in prototyping and DIY projects.
![DIP Package]( "Microcontrollers DIP Package")
Quad flat package (QFP)
A QFP is a surface mount package that consists of a rectangular body with a grid of pins on the underside. QFPs have
a higher pin density than DIPs, which makes them suitable for use in compact designs.
![QFP Package]()

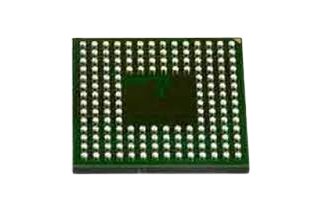

Ball grid array (BGA)
A BGA is a surface mount package that consists of a rectangular body with a grid of balls on the underside. BGAs have an
even higher pin density than QFPs, which makes them suitable for use in very compact designs. However, they are more difficult
to work with than DIPs or QFPs due to the small size of the balls and the lack of pins.
![BGA Package]()

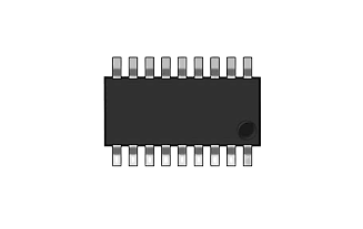

Small outline package (SOP)
An SOP is a surface mount package that consists of a rectangular body with a row of pins on each side. SOPs are similar to DIPs
in terms of their shape, but they are surface mount packages and have a lower pin density.
![SOP Package]()
