Unraveling the Memory Architecture
of ATmega8

ATmega8

At the heart of any microcontroller lies its memory. It's where data resides, instructions are fetched, and operations are executed. The ATmega8, a stalwart in the microcontroller realm, boasts a memory architecture that is both sophisticated and optimized for performance.

Let's dive deep into the memory labyrinth of the ATmega8.

In-System Reprogrammable Flash
Program Memory

The ATmega8 is equipped with 8KB of in-system programmable flash memory. This segment is the primary residence for the firmware or the software the microcontroller runs. But why Flash?

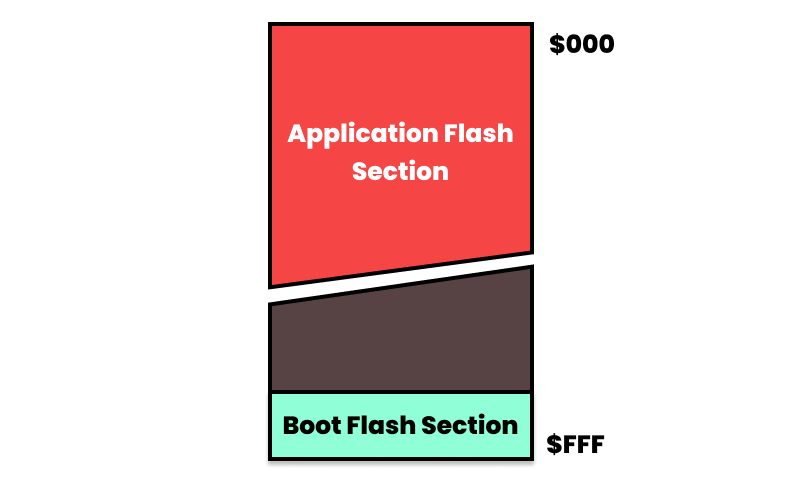

In-System Reprogrammable Flash Program Memory

  • Non-volatility: Even when power is lost, the data remains intact.

  • In-system programmability: Unlike older microcontrollers that require dedicated programmers, the ATmega8 can be programmed while in the system, simplifying updates and bug fixes.

Since all AVR instructions are 16-bits or 32-bits wide, the Flash is organized as 4K × 16 bits. For software security, the Flash Program memory space is divided into two sections, the Boot Program section and the Application Program section.

The Flash memory has an endurance of at least 10,000 write/erase cycles. The ATmega8 Program Counter (PC) is 12 bits wide, thus addressing the 4K Program memory locations.

SRAM Data Memory: The Workspace

Static Random-Access Memory (SRAM) is where the ATmega8 performs its calculations and temporary data storage. With 1KB of SRAM, the ATmega8 has ample space for variables, intermediate results, and stack operations. SRAM is chosen for its:

  • Speed: Faster than flash and EEPROM, ensuring real-time operations aren't bottlenecked.

  • Flexibility: Can be read from or written to, as opposed to the mostly read-only nature of Flash.

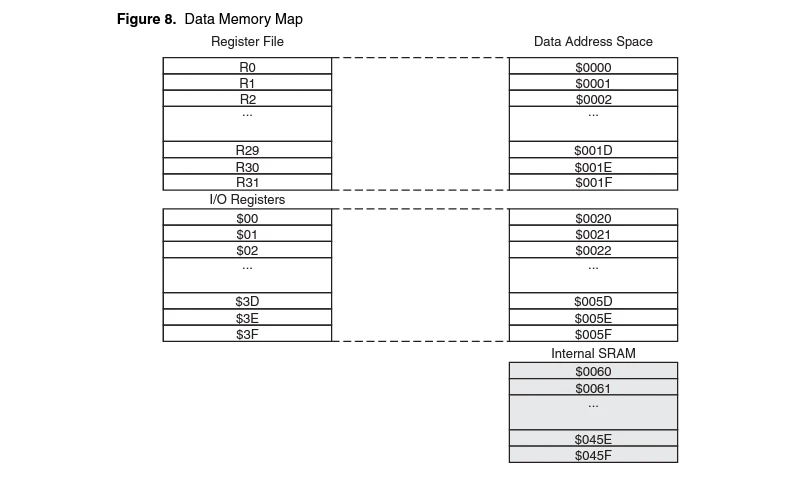

SRAM Data Memory

The lower 1120 Data memory locations address the Register File, the I/O Memory, and the internal data SRAM. The first 96 locations address the Register File and I/O Memory, and the next 1024 locations address the internal data SRAM.

The five different addressing modes for the Data memory cover are direct, Indirect with Displacement, Indirect, Indirect with Pre-decrement, and Indirect with Post-increment.

In the Register File, registers R26 to R31 feature the indirect addressing pointer registers. The direct addressing reaches the entire data space.

The Indirect with Displacement mode reaches 63 address locations from the base address given by the Y-register or Z-register.

When using register indirect addressing modes with automatic pre-decrement and post-increment, the address registers X, Y and Z are decremented or incremented.

The 32 general-purpose working registers, 64 I/O Registers, and the 1024 bytes of internal data SRAM in the ATmega8 are all accessible through all these addressing modes.

EEPROM: The Keeper of Secrets

Electrically Erasable Programmable Read-Only Memory (EEPROM) in the ATmega8 serves a unique purpose. With 512 bytes, it's not as expansive as Flash or SRAM, but it's invaluable. EEPROM retains data across power cycles, making it ideal for:

  • User settings: Think of volume settings in a device that remain consistent even after a restart.

  • Data logging: For applications that need to remember specific events or occurrences.

crisis_alert The ATmega8 contains 512bytes of data EEPROM memory. It is organized as a separate data space, in which single bytes can be read and written.

The EEPROM has an endurance of at least 100,000 write/erase cycles.
