Experience the power of static electricity when you comb your hair on a dry day. The action removes electrons from the comb's surface, leaving it with a surplus of protons, which we perceive as a positive charge.

This phenomenon also transpires in clothes dryers, where the motion and friction between clothes and the dryer's walls generate static electricity.

At times, these charges can be powerful enough to ionize air molecules, creating a visible glow in low-light conditions.

A similar process unfolds during a rainstorm. Here, falling raindrops strip electrons from air molecules, transporting them to the earth and leaving the air with a net positive charge.

The building up of this ionization reaches a critical point that triggers a lightning strike, offering a path for electrons to journey back to the clouds.

Generally, objects have neutral surface charges due to the balance between positively charged protons and negatively charged electrons.

This balance results in objects being essentially electrically neutral. However, when there's a transfer of electrons between two objects, the recipient becomes negatively charged , while the donor becomes positively charged .

Yet, in nature, an object rarely maintains a constant charged state, and any accumulated charge tends to disperse over time, reestablishing its neutral condition.

The electric charge represents a foundational property of matter, stemming from the presence or absence of electrons. It quantifies the amount of electrical energy in an object and determines how it interacts with other charged entities.

In semiconductors, electrons move within a crystal lattice structure. Their movement leaves a vacancy, a 'hole'. Consequently, negative charges (electrons) and positive charges (holes) appear to move in opposite directions.

Imagine an auditorium full of people, where an empty seat at the end of a row shifts to the opposite end as each person successively moves into it.

Here, people (representing electrons) move in one direction while the vacant seat (representing the hole) seems to move in the opposite direction.

electric charge

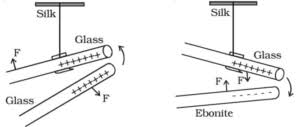

Tracing back to the origins of understanding electric charge, ancient Greek philosopher Thales of Miletus discovered that amber rubbed with animal fur could attract other objects, signifying the presence of charge.

silk and glassexperiment

This early observation laid the groundwork for extensive research into electricity and charge, culminating in 18th-century scientific breakthroughs that established a theoretical framework to explain the electric charge.

One of these significant discoveries was the identification of the electron by British physicist J.J. Thomson in 1897.

Thomson's research revealed the electron as a negatively charged particle within atoms.

charged particles within atom

This discovery paved the way for the formulation of the modern atomic model. It describes atoms as comprising a positively charged nucleus of protons and neutrons, enveloped by a cloud of negatively charged electrons.

Such breakthroughs in the understanding of electric charge sparked the development of electromagnetism, which explores how electric charges interact with each other and magnetic fields.

electric charge
This branch of physics is governed by Maxwell's equations, a mathematical model that defines the interactions and behaviors of electric and magnetic fields.

Besides electrons, there are other subatomic particles like protons (positive charge) and neutrons (no charge). The number of protons in an atom, known as the atomic number, dictates the element's chemical properties.

Electric charge is integral to various everyday technologies, such as batteries, electric motors, and generators. Moreover, it plays a crucial role in natural phenomena, including lightning and auroras.

Electric charge, a fundamental characteristic of matter, elucidates interactions between particles on an atomic and subatomic scale.

This attribute, either positive or negative, measures the quantity of electrical energy in an object. It is indispensable for a myriad of technologies that pervade our daily lives and play a significant role in various natural phenomena.

Interactions and Effects of Electric Forces
on Charged Entities

Imagine a scenario with two balls, each carrying a certain type of electric charge. If both these balls carry either positive or negative charges, they will exhibit a repelling behavior, pushing away from each other.

On the other hand, if the charges on these balls are of contrasting signs—one positive and the other negative—they will display an attraction towards each other.

It is essential to note that these forces are interactions between the charges themselves and not the physical matter of the balls.

The magnitude of the force between the charged objects is directly related to the quantity of charge involved. Hence, as more charge is added to these objects, the force of either repulsion or attraction correspondingly intensifies.

It is interesting to observe that the nature of these interactions remains consistent, irrespective of the type of material constituting these objects.

As an example, if we swap the insulating balls with small, lightweight metalized spheres suspended from insulating threads, the outcomes remain unchanged, as demonstrated in the following figure.

interaction and deflection forces on charge bodies

What intrigues scientists is the observation of these forces acting over a distance.

These interactions occur whether the charged spheres are suspended in air or in a vacuum, manifesting the fundamental characteristic of electric charges to exert forces irrespective of the surrounding medium.

This phenomenon is a direct consequence of the fundamental laws of electromagnetism, specifically, Coulomb's law, which states that the force between two charged particles is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.

This principle underlies many natural and man-made phenomena, including the behavior of electric circuits, the operation of capacitors, and even the structuring of atoms and the bonding between them.

Thus, understanding the forces exerted by charged bodies is fundamental to our comprehension of the physical world, and forms the basis of much of modern technology, from the micro-scale of semiconductor devices to the macro-scale of power transmission and distribution.

Fundamental Characteristics of Electric Charge

Electric charge, a critical property of matter, has several intriguing characteristics that govern the behavior of charged particles and their interactions. Let's delve into these properties in detail:

  • Quantization - Electric charge exhibits a property known as quantization, implying that it occurs in fixed, indivisible units. The smallest observable unit of charge is that of an electron, conventionally denoted as a negative charge. On the flip side, positive charges exist in units equivalent to an electron's charge but carry the opposite sign.
  • Conservation - One of the core principles governing electric charge is the Law of Conservation of Charge. This law dictates that the total quantity of electric charge within an isolated system remains unvarying. It signifies that electric charge cannot be created nor destroyed; it can only be transferred or rearranged, ensuring the constancy of the universe's total charge.
  • Additivity - Electric charge manifests an additive property, meaning the overall charge of a system is essentially the sum of the individual charges it comprises. To illustrate, consider multiple charged entities. Their collective charge would be the arithmetic sum of each individual's charge.
  • Interactions - Electric charges engage with each other via the electromagnetic force, one of the fundamental forces in nature. The interplay between charges is dictated by their magnitude, the distance separating them, and their respective signs. Same-sign charges repel, while opposite-sign charges attract each other.
  • Transferability - One salient feature of electric charges is their ability to transfer from one object to another through a phenomenon known as electric conduction. During this process, electrons can shift from one entity to another, effectuating a change in the electrical state of both participating bodies.
  • Conductors and Insulators - Materials react differently to the passage of electric charges. Some substances, termed conductors, facilitate the smooth flow of charges, while others, known as insulators, impede their movement. Metals are a common example of conductors, while rubber and glass typically act as insulators.
  • Polarization - Presence of electric charges can instigate a phenomenon known as polarization. This is characterized by an uneven distribution of charges within an object, resulting in the formation of an electric field. This field can subsequently influence other charged entities in the vicinity.

These characteristics of electric charge not only shape our scientific understanding of the universe but also drive numerous technologies and natural phenomena we encounter in everyday life. From the simple act of rubbing a balloon against your hair, to more complex applications like telecommunications, electricity generation, and even biological processes such as nerve conduction - the properties of electric charge underpin the functioning of our world.

Classifying Electric Charge

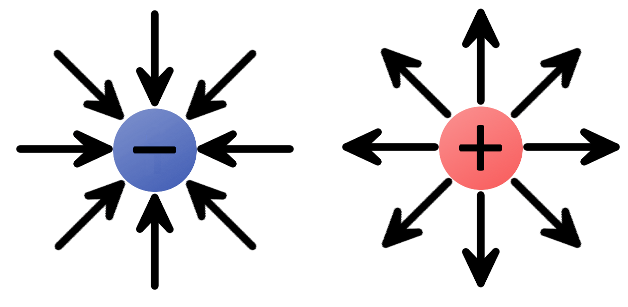

Electric charge presents itself in two distinct types: positive and negative.

Associated with protons—subatomic particles nestled within the nucleus of an atom—are positive charges. Each proton carries a positive charge of +1.

On the other hand, negative charges correspond to electrons, the subatomic particles that trace orbits around an atom's nucleus. Each electron carries a negative charge of -1.

Negative And Positive Charge

In addition to these positive and negative charges, a neutral charge emerges when an object possesses an equivalent number of positive and negative charges, leading to a net charge of zero.

This neutrality is typically observed in atoms under stable conditions, as they maintain an equal number of protons (positively charged) and electrons (negatively charged).

This balance of charges ensures that atoms are, by default, electrically neutral unless they lose or gain electrons.

Understanding this balance and the ability to manipulate it forms the basis of countless physical and chemical phenomena that we observe and employ in technology.

To further our understanding, consider the creation of ions, which are atoms or molecules carrying a net positive or negative charge.

When an atom loses one or more of its electrons, it gains a net positive charge, becoming a cation.

Conversely, when an atom gains additional electrons, it carries a net negative charge, transforming into an anion. This fundamental concept is essential for a broad spectrum of scientific fields, from chemistry and biology to physics and engineering.
