Diodes

Semi conductors

A diode is a two-terminal electronic component that conducts electric current primarily in one direction; it has low resistance in one direction and high resistance in the other. This property is known as "unidirectional" behavior, and it distinguishes diodes from other electronic components, such as resistors, inductors, and capacitors, which conduct equally in both directions.

Diodes are made from a piece of semiconductor material, usually silicon, with a "p-n junction." The junction is a boundary between two types of semiconductor material: "p-type" (with positively charged "holes") and "n-type" (with negatively charged electrons).

deblur

PN junction diode

Learn keyboard_arrow_right
block

Rectifier diode

Learn keyboard_arrow_right
remove

Zener diode

Learn keyboard_arrow_right
whatshot

Schottky diode

Learn keyboard_arrow_right
lightbulb

Light Emitting Diode

Learn keyboard_arrow_right

Diodes are like the guardians of electronic circuits. They control the voltage levels and transform Alternating Current (AC) into Direct Current (DC), which is an important process in many electronic devices.

They are primarily made from semiconductor materials, like silicon and germanium, which boost their performance.

bookmark A solid-state device created by joining the p-type and n-type material is called assemiconductor diode

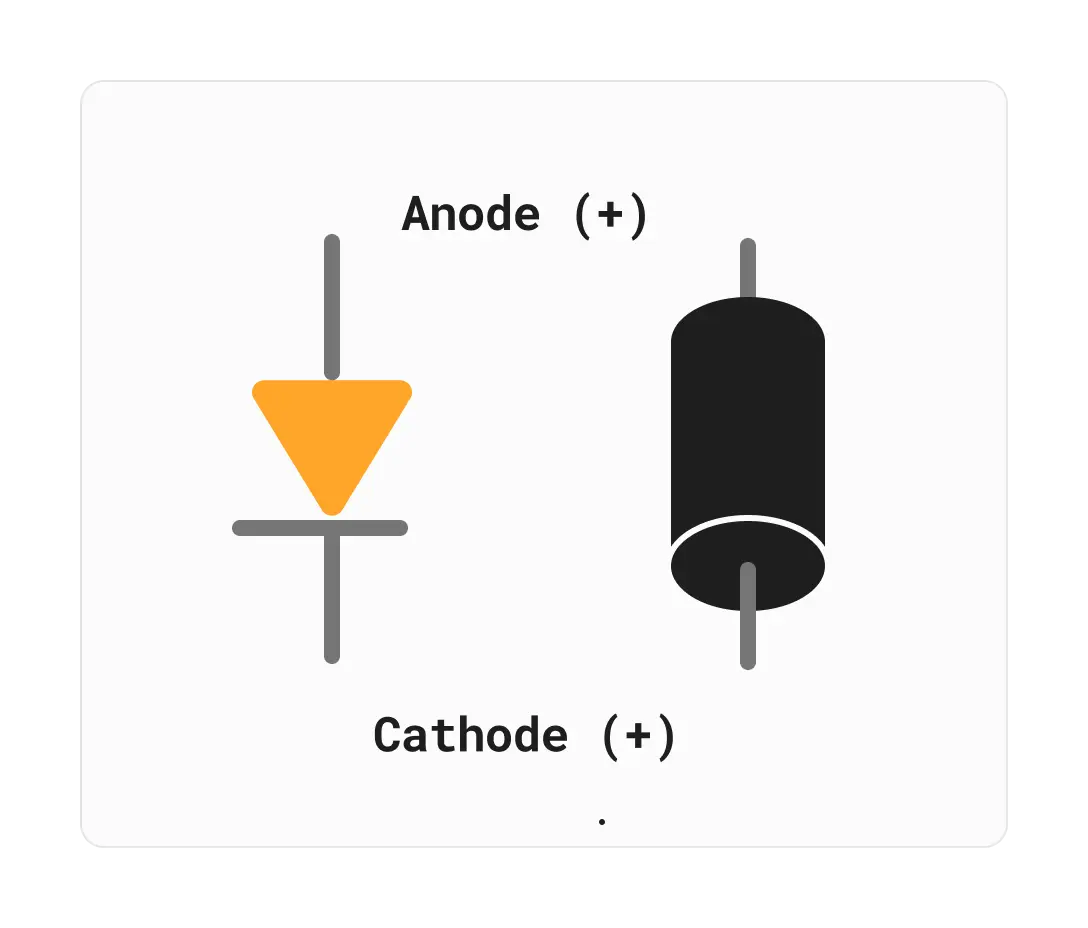

Diode symbol and presentation

One important thing to remember about diodes is that they allow electrical current to flow in one direction only. However, how they carry out this job can vary.

This is because there are many different kinds of diodes, and each type has its own unique way of working and is suitable for different tasks.

To sum it up, diodes are incredibly versatile due to their varied ways of conducting electricity. This versatility makes them an essential part of today's electronics.

They are used in a wide variety of applications and each type of diode is specifically engineered to work best in certain conditions, thus helping to improve the overall performance and dependability of electronic circuits.

Construction of Diode

Diodes are made of semiconductor materials such as silicon, germanium, or selenium. The semiconductor material is doped, which means it has impurities added to it, creating a structure called a p-n junction.

One side of the diode is an 'n-type' semiconductor, with extra free electrons, and the other side is a 'p-type' semiconductor, with extra holes (absence of electrons). The boundary between these two regions is called the p-n junction.

The construction of a diode typically involves the arrangement of semiconductor materials and the formation of a p-n junction.

Here's a general overview of the construction of a basic semiconductor diode:

Semiconductor Material

Diodes are usually constructed using semiconductor materials such as silicon (Si) or germanium (Ge). These materials have unique electrical properties that make them suitable for diode fabrication.

P-Type Semiconductor Region

p-type semiconductor material

A p-type semiconductor region is created by doping the semiconductor material with impurities that introduce positively charged holes.

This doping process typically involves adding trivalent impurity atoms (such as boron) to the semiconductor material, creating an excess of holes.

N-Type Semiconductor Region

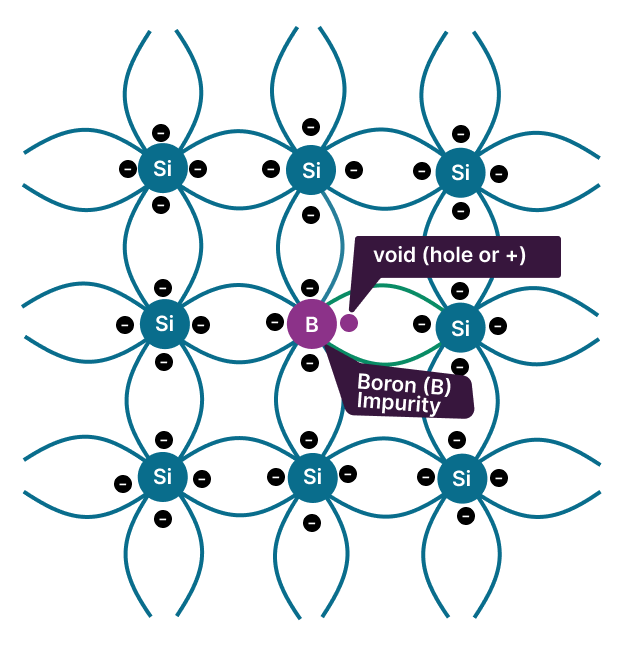

n-type semiconductor material

An n-type semiconductor region is created by doping the semiconductor material with impurities that introduce negatively charged electrons.

This doping process usually involves adding pentavalent impurity atoms (such as phosphorus) to the semiconductor material, introducing an excess of free electrons.

Formation of the P-N Junction

The p-type and n-type regions are brought together, forming what is known as a p-n junction. At the junction, the free electrons from the n-type region diffuse into the p-type region, recombining with the holes.

This process creates a region near the junction that is depleted of charge carriers, called the depletion region.

Metal Contacts

Metal contacts, usually made of materials like aluminum or gold, are applied to each side of the p-n junction to provide electrical connections. These contacts enable the external connection of the diode to other components in an electrical circuit.

Encapsulation

To protect the diode and provide mechanical support, it is often encapsulated within a protective casing, such as a glass or plastic package. The encapsulation also helps in preventing external contaminants from affecting the diode's performance.

It's important to note that the construction details may vary depending on the specific type of diode, as different diodes have unique features and additional components, such as metal layers, diffused regions, or additional doping techniques, to achieve specific functionality.

Diode biasing

Diode biasing is a fundamental concept in electronics, particularly in the operation of diodes and transistor circuits. To understand diode biasing, we first need to understand what a diode is and how it works.

A diode is a two-terminal electronic component that conducts current primarily in one direction (asymmetric conductance); it has low (ideally zero) resistance in one direction, and high (ideally infinite) resistance in the other.

The direction of easy current flow is from the anode to the cathode.

Diode biasing refers to the application of a DC voltage to a diode to make it operate in a certain region of its characteristic curve.

There are two types of biasing: forward bias and reverse bias.

Forward Bias

In forward biasing, the positive side of a power source is connected to the anode, and the negative side to the cathode. This causes the diode to conduct electricity.

The voltage applied in this case is called the forward bias voltage. For silicon diodes, the forward bias voltage is typically around 0.7 volts.

This means that the diode starts conducting current only when the applied voltage is more than the forward bias voltage.

Reverse Bias

In reverse biasing, the positive side of a power source is connected to the cathode, and the negative side to the anode.

This causes the diode to block the flow of electricity. The voltage applied in this case is called the reverse bias voltage.

In this state, ideally, no current should flow through the diode. However, in reality, a very small current, known as the leakage current, does flow.

Importance of Diodes in Modern
Electronic Systems

In the realm of modern electronic systems, diodes hold tremendous significance due to their unique electrical properties and versatile applications.

Diodes are indispensable components that play a crucial role in controlling, regulating, and manipulating electrical currents.

They are fundamental building blocks in a wide range of electronic devices, circuits, and systems. Let's delve into the importance of diodes in modern electronic systems.

1. Current Flow Control

Diodes serve as efficient one-way valves for electrical current.

Their ability to conduct current in one direction while blocking it in the opposite direction is paramount in rectifying alternating current (AC) into direct current (DC).

This rectification process is vital in numerous applications, including power supplies, battery charging, and electronic equipment operation.

2. Voltage Regulation

Diodes, particularly Zener diodes, are essential for maintaining stable and regulated voltages in electronic systems.

Zener diodes operate in the reverse breakdown region, allowing them to conduct current when a specific voltage threshold is exceeded.

This property enables them to regulate voltage and protect sensitive components from voltage spikes or variations.

3. Signal Modulation

Diodes are extensively used in signal modulation techniques, such as amplitude modulation (AM) and frequency modulation (FM).

They contribute to the efficient transmission and reception of signals in communication systems, radios, televisions, and wireless devices.

Diodes play a pivotal role in demodulating signals, extracting information, and recovering the original transmitted data.

4. Switching and Digital Logic

Diodes are key elements in digital logic circuits and switching applications.

They enable the control and manipulation of digital signals by allowing or blocking their flow based on logical conditions.

Diodes, in combination with other components like transistors, facilitate the creation of logic gates, multiplexers, and other building blocks in digital systems, leading to the development of complex computing devices.

5. Light Emission

Light Diodes (LEDs) revolutionized lighting technology, offering energy-efficient, long-lasting, and versatile lighting solutions.

LEDs are diodes that emit light when current passes through them. They find extensive applications in displays, indicators, automotive lighting, backlighting, and general illumination.

LEDs have transformed the efficiency and aesthetics of lighting systems across various industries.

6. Circuit Protection

Diodes provide crucial protection to electronic systems and components. They are employed in circuits to block or limit the reverse voltage that can damage sensitive elements.

Additionally, diodes help dissipate excess energy and protect against voltage spikes, transient surges, and electromagnetic interference (EMI). These protective functions ensure the longevity and reliability of electronic systems./p>

7. Energy Harvesting

Diodes are integral to energy harvesting techniques, such as solar cells and thermoelectric generators.

In solar cells, diodes facilitate the conversion of sunlight into electricity by preventing the reverse flow of current. They play a vital role in extracting maximum energy from renewable sources and enabling sustainable power generation.

deblur

PN junction diode

A p-n junction diode is a basic semiconductor device consisting of a p-type semiconductor region and an n-type semiconductor region that are joined together. The junction between these regions forms a depletion region, which creates a barrier for the flow of current in one direction (reverse bias) while allowing current to flow in the opposite direction (forward bias).

The primary function of a pn junction diode is to allow current to pass through it in one direction while blocking it in the opposite direction.

Start Learnning

block

Rectifier diode

Rectifier diode is a specific type of diode used for rectification, which involves converting alternating current (AC) to direct current (DC). Rectifier diodes are typically designed to have a high voltage blocking capability and low forward voltage drop.

They are optimized for converting AC to DC by allowing current flow in one direction during the positive half-cycle of the AC waveform while blocking it during the negative half-cycle. This property makes them suitable for power supply applications.

Start Learnning

remove

Zener diode

A Zener diode is a specialized type of diode that is designed to work in the reverse breakdown region of its voltage-current characteristics. Unlike regular diodes that are typically used for rectification and switching purposes, Zener diodes are specifically engineered to exploit the phenomenon of Zener breakdown, which allows them to maintain a constant voltage across their terminals even when the current flowing through them changes.

Zener diodes find a wide range of applications, primarily in voltage regulation and protection circuits. Due to their ability to maintain a precise voltage level, they are commonly used as voltage references, voltage regulators, and surge protectors.

Start Learnning

whatshot

Schottky diode

A Schottky diode, also known as a Schottky barrier diode or hot-carrier diode, is a type of semiconductor diode that has a low forward voltage drop and a fast switching action. It's named after the German physicist Walter H. Schottky.

The key difference between a Schottky diode and a regular silicon or germanium diode lies in the construction of their junctions. While a regular diode is formed from a p-n junction, a Schottky diode is formed from the junction between a semiconductor (usually N-type silicon or N-type gallium arsenide) and a metal (such as platinum, molybdenum, or tungsten silicide).

Start Learnning

lightbulb

Light Emitting Diode

With their compact size and durability, LEDs are used in a myriad of applications across various industries. From residential lighting and automotive lighting to backlighting displays and signage, LEDs offer superior brightness, color options, and control. They have also found their way into commercial buildings, street lighting, horticulture lighting, and even wearable devices.

One of the key advantages of LEDs is their exceptional energy efficiency. Compared to traditional incandescent bulbs, LEDs consume significantly less power while delivering comparable or even greater brightness. This energy-saving feature translates into reduced electricity costs and a lower carbon footprint.

Start Learnning
