ATmega Microcontrollers

The Atmega microcontroller family is a popular and versatile series of microcontrollers developed by Atmel Corporation. These microcontrollers are widely used in a range of applications, from consumer electronics to industrial control systems. The Atmega controller is an 8-bit microcontroller that is part of the Atmel AVR family of microcontrollers.

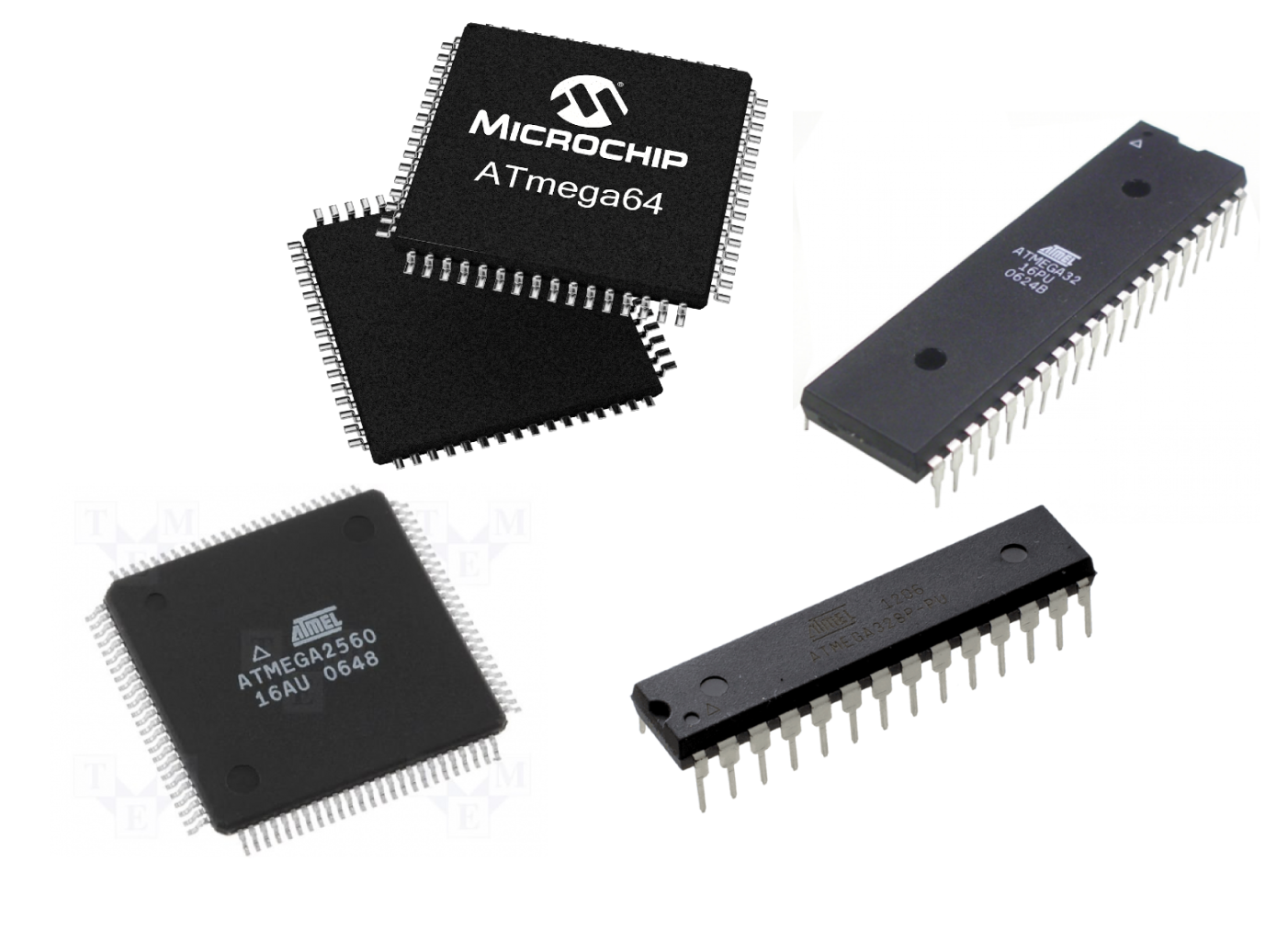

It is available in a range of package types, including PDIP, TQFP, and QFN.

The Atmega microcontrollers are versatile and reliable microcontrollers that have well-suited for a range of embedded systems applications. Its flexibility, customization options, and built-in protection features make it a popular choice for both professional engineers and hobbyists alike. If you're looking for a microcontroller that can handle a wide range of applications, the Atmega controller is definitely worth considering.

Why Choose ATmega?

• Easy to Use

  One of the reasons ATmega microcontrollers have gained popularity, especially among beginners, is their ease of use. With platforms like Arduino, which is based on the ATmega328P, even those new to electronics can dive right in.

• Versatile

  The ATmega series ranges from simple 8-pin devices to more complex 100-pin options, catering to both basic and advanced projects.

• Robust and Durable

  ATmega microcontrollers are known for their resilience, capable of withstanding challenging environments, from cold weather stations to heated industrial settings.

Power Consumption and Operating Voltage

Atmega microcontrollers are designed to operate at low power, making them suitable for battery-powered applications. They typically have a wide operating voltage range, typically from 1.8V to 5.5V, allowing them to operate on a variety of power sources.

Low power consumption is achieved through various techniques, such as power-down modes, sleep modes, and clock scaling.

Architecture

Atmega microcontrollers are based on Harvard architecture , which means that they have separate memories for program instructions and data.

This architecture provides faster and more efficient access to program instructions and data. The Atmega microcontrollers use an 8-bit RISC (Reduced Instruction Set Computing) architecture , which allows for faster execution of instructions with fewer clock cycles.

Memory

Atmega microcontrollers have three types of memory: Flash memory, SRAM, and EEPROM .

Flash memory is used to store the program instructions, while SRAM is used for data storage during program execution. EEPROM (Electrically Erasable Programmable Read-Only Memory) is used for storing non-volatile data that needs to be retained even when the power is turned off.

Peripherals

Atmega microcontrollers have a range of peripherals that can be used to interface with external devices.

These include USART, SPI, I2C, ADC, PWM, and timers/counters. USART (Universal Synchronous/Asynchronous Receiver/Transmitter) is used for serial communication, while SPI (Serial Peripheral Interface) and I2C (Inter-Integrated Circuit) are used for interfacing with devices that use those protocols.

ADC (Analog to Digital Converter) is used for converting analog signals into digital signals. PWM (Pulse Width Modulation) is used for controlling the speed of motors and other devices, while timers/counters are used for timing and counting events.

Special Microcontroller Features

Atmega microcontrollers have a range of special features that make them suitable for a variety of applications. These include on-chip debugging, bootloader support, and a wide range of clock sources.

On-chip debugging allows for debugging of the program without the need for external tools. Bootloader support allows for easy programming of the microcontroller through a bootloader program, without the need for an external programmer. The wide range of clock sources allows for flexible clocking of the microcontroller, depending on the application requirements.

I/O and Package

Atmega microcontrollers have a range of I/O pins that can be used to interface with external devices. These pins can be configured as inputs or outputs and can be used to interface with sensors, actuators, and other devices. Atmega microcontrollers are available in a range of package options, including DIP (Dual In-Line Package), QFP (Quad Flat Package), and TQFP (Thin Quad Flat Package).

The choice of the package depends on the application requirements and the available space for the microcontroller.
