2-Digit 7-Segment Display: Interfacing with AT89C51 Microcontroller

The AT89C51 microcontroller, a member of the 8051 family, is widely used in embedded system applications. A common challenge faced by developers is displaying numerical information, for which a 7-segment display is often the solution. Interfacing a 2-digit 7-segment display with the AT89C51 is an intriguing process that marries hardware connections with software programming.

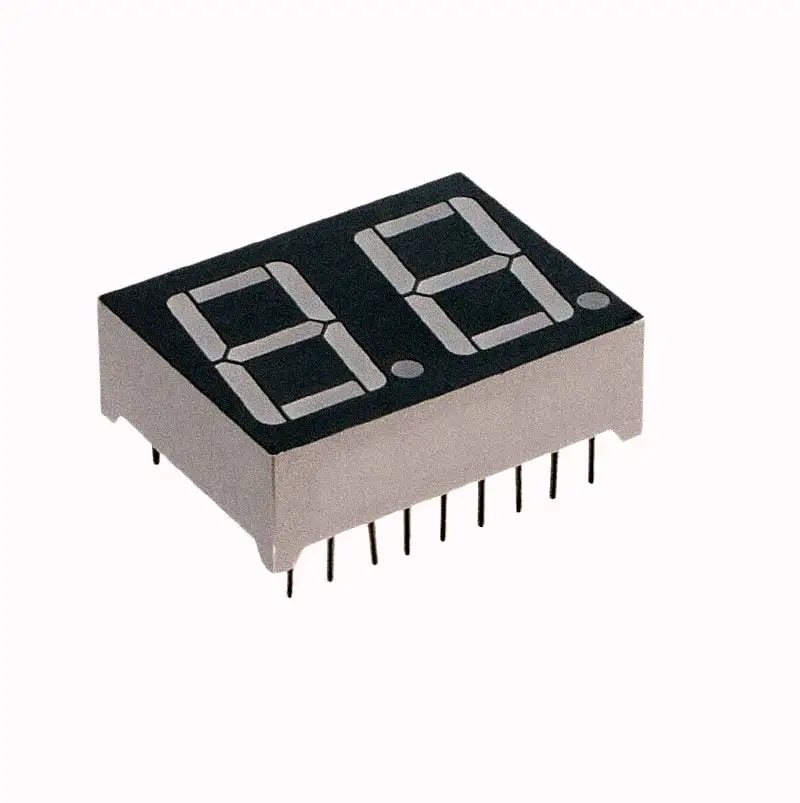

2 7-Segment Display

Interfacing a 2-digit 7-segment display with the AT89C51 microcontroller is a robust solution for numerical display needs in embedded systems. While the process requires meticulous hardware and software integration, the resulting versatility and scalability make it a valuable skill for developers and engineers.

Table of Contents

7-Segment Display Basics

Anatomy of a 7-Segment Display

A 7-segment display consists of 7 LEDs (A to G) arranged in a figure '8' pattern, with an additional decimal point. Each segment can be controlled individually, enabling the representation of numbers 0 to 9.

  • Common Cathode (CC)

    All the cathodes are connected to the ground.

  • Common Anode (CA)

    All the anodes are connected to the supply voltage.

Interfacing Techniques with AT89C51

Connection Details

For 2-digit interfacing, multiplexing is often employed. Here's how:

Common Cathode Display

Connect the common cathode to the ground.

Connect each segment to a separate I/O pin on AT89C51.

Use resistors to limit current.

Common Anode Display

Connect the common anode to Vcc.

Similar connection to segments through resistors.

Multiplexing Technique

Turn ON one digit while keeping the other OFF.

Rapidly switch between digits to create the illusion of simultaneous display.

Coding Considerations

  • Initialization

    Configure the ports.

  • Display Function

    Create a function to send the corresponding segment values.

  • Delay Function

    To control the display time of each digit.

Code Example

Here's a simple C code snippet for displaying '12' -


#include <reg51.h>
#define SEVEN_SEGMENT P2

void delay(unsigned int time);

void main() {
  unsigned char numbers[] = {0xC0, 0xF9, 0xA4, 0xB0, /* ... */, 0xBF};
  while(1) {
    SEVEN_SEGMENT = numbers[1];
    delay(5);
    SEVEN_SEGMENT = numbers[2];
    delay(5);
  }
}

void delay(unsigned int time) {
  // Delay code here
}

Real-Time Applications

  • Clock Displays
  • Temperature Monitors
  • Counter Systems

Pros and Cons of 2-Digit
Interfacing with AT89C51

Pros

  • Enables compact numerical displays
  • Versatility in applications

Cons

  • Occupies more I/O pins
  • Complexity in programming

Unique Features

  • Scalability

    Can be extended to multi-digit interfacing.

  • Customizability

    Allows for various display effects.

Whether for simple counter displays or complex monitoring systems, this technology continues to be a staple in the world of electronics, offering tangible value to various real-world applications.
